Eurocodes (EN)

Steel structures design

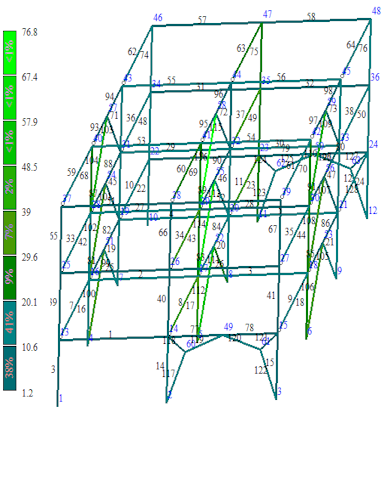

Results of steel design

Steel structures design in LIRA-FEM (LIRA-SAPR) is performed according to the following procedure:

The material parameters, the design characteristics of the element and the selection limitation are specified;
Design parameters such as normative document, according to which to perform the analysis; which forces to take for analysis analysis: DCF or DCL;
Checking the specified cross-section and selecting the required cross-section.

Checking and selection of steel sections can be performed for all elements of the model or for one specific element in the local mode of steel structures (STC-FEM).

List of standards implemented in the steel structure design software

DBN V.2.6-163:2014 (Ukraine)
EUROCODE 3.1.1 EN 1993-1-1:2005/AC:2009 (EU)
SP RK EN 1993-1-2:2005/2011 (Kazakhstan)
AISC LRFD 2nd edition (USA)
SNiP II.23-81* (USSR)
SP 16.13330.2017/SP 260.1325800.2016 (RF)

STC-FEM

STC allows to check and select steel section of one element separately from the whole design scheme.

This module also allows the steel nodes design: column bases, beam-to-column joints, truss nodes, etc.

Editable steel tables

The editable steel tables in the steel structure design software allows you to create, change or delete assortments of steel sections or steel grades. This functionality allows to use the software package for steel structures design in a more flexible way.

Metal structures design

Selection of cross-section for metal elements and check of defined sections and joints according to different building codes. It is included in all standard configurations of LIRA-FEM.

Local design of steel elements and joints

It is included in all standard configurations of LIRA-FEM.

Editable steel tables

Creation of new and editing of existing assortments of rolled and welded sections. It is included in all standard configurations of LIRA-FEM.

LIRA-FEM`s prices

Image Description — Collection of articles

Collection of articles about steel structures design in LIRA-FEM

The collection contains articles related to the use of LIRA-FEM for the steel structures design.

Go on website

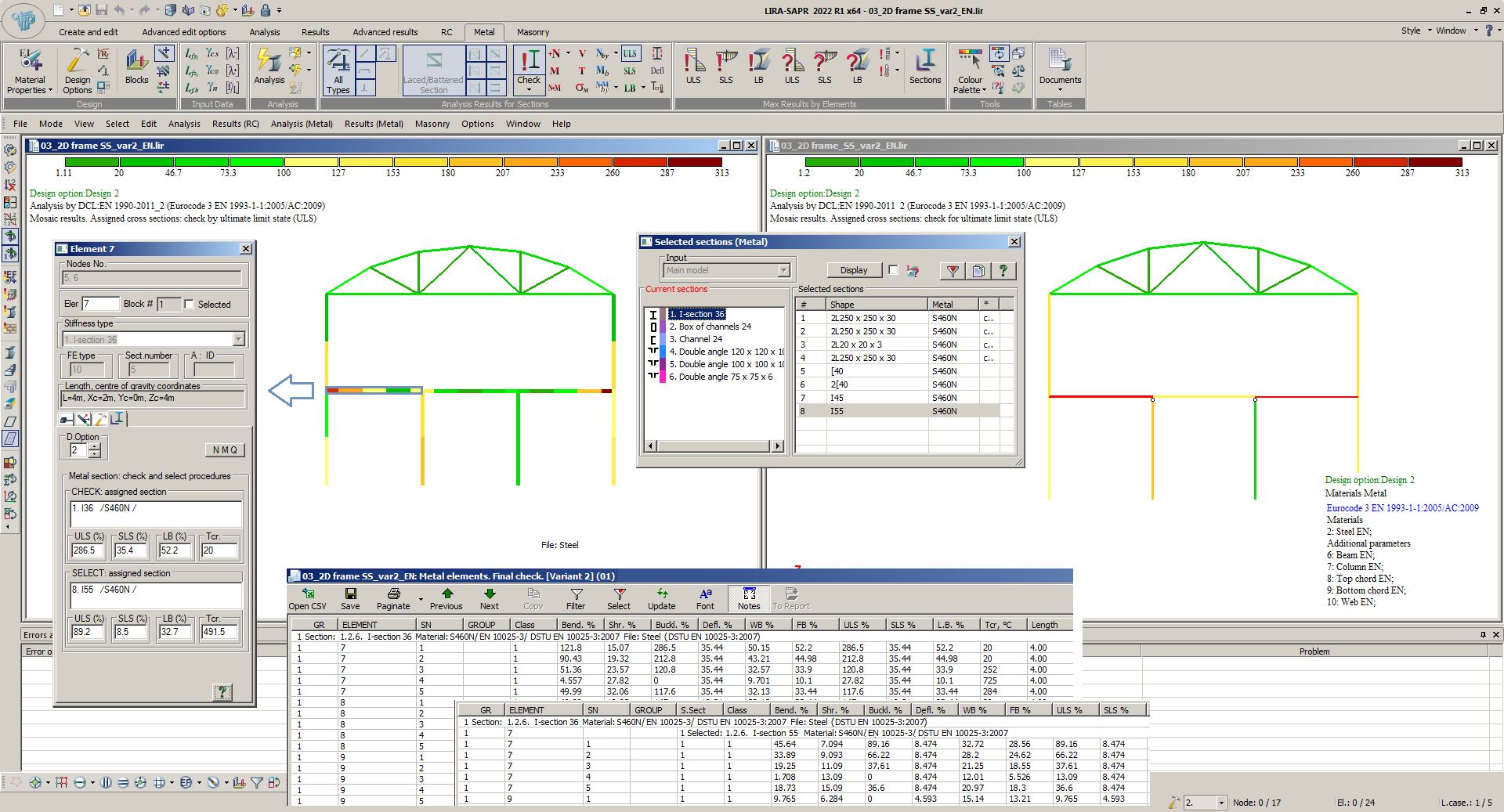

Example of modelling and analysis of a steel frame

Procedure of generation of design scheme of a steel frame; specifying loads; stability analysis of the steel frame; checking and selection of steel sections.
