Workflow

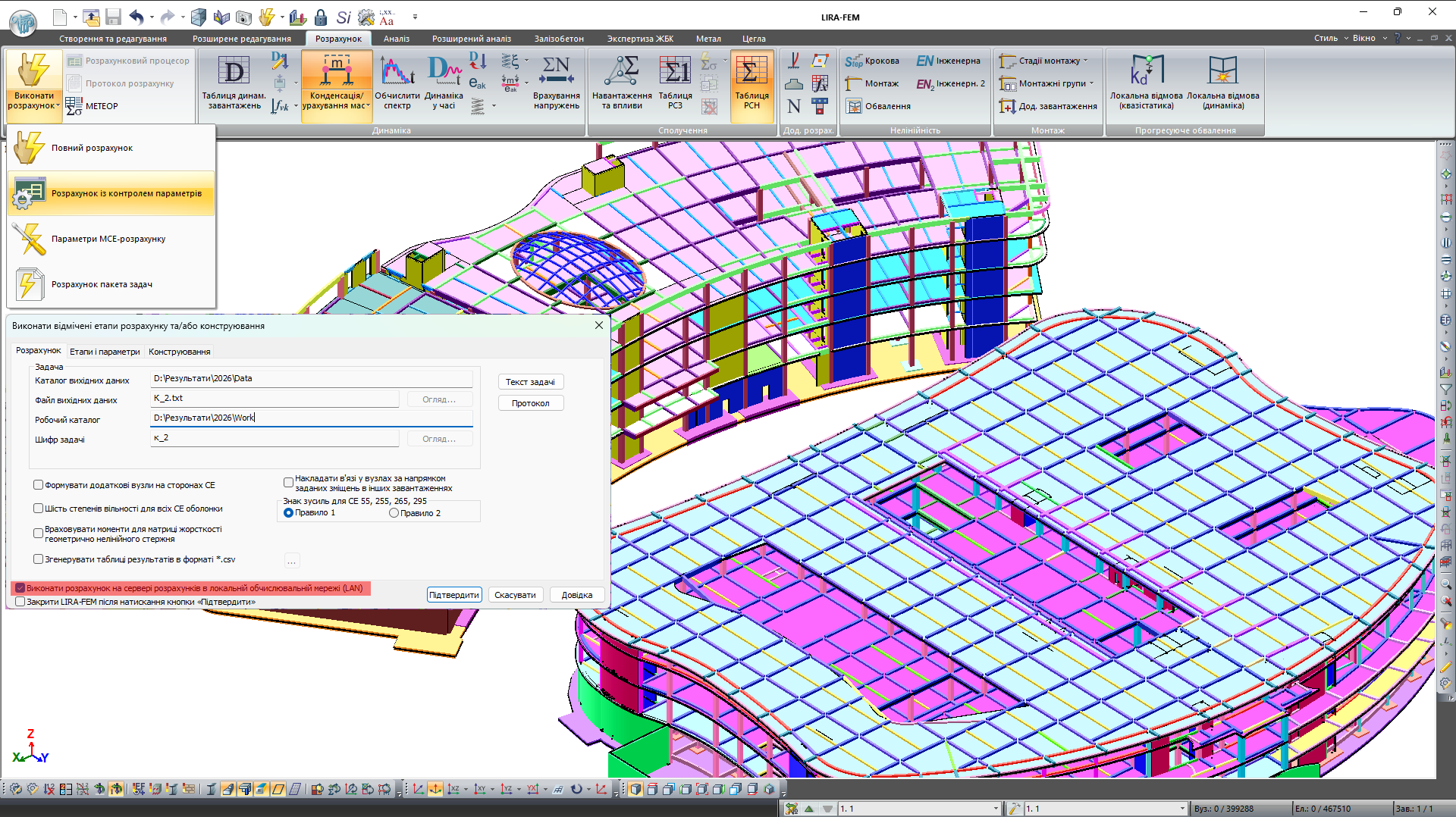

Preparing the model for calculation on the server

The process of interaction with the server is automated and includes the following steps:

  • Preparation: preparing the analysis model on the client workstation.
  • Queuing: sending task files to the analysis server.
  • Calculation: calculating the model using the resources of a dedicated server within the local network.
  • Retrieving results: automatically returning the results to the user's workstation (provided that the corresponding option is enabled).
  • Analysis: processing the obtained data in the familiar interface.

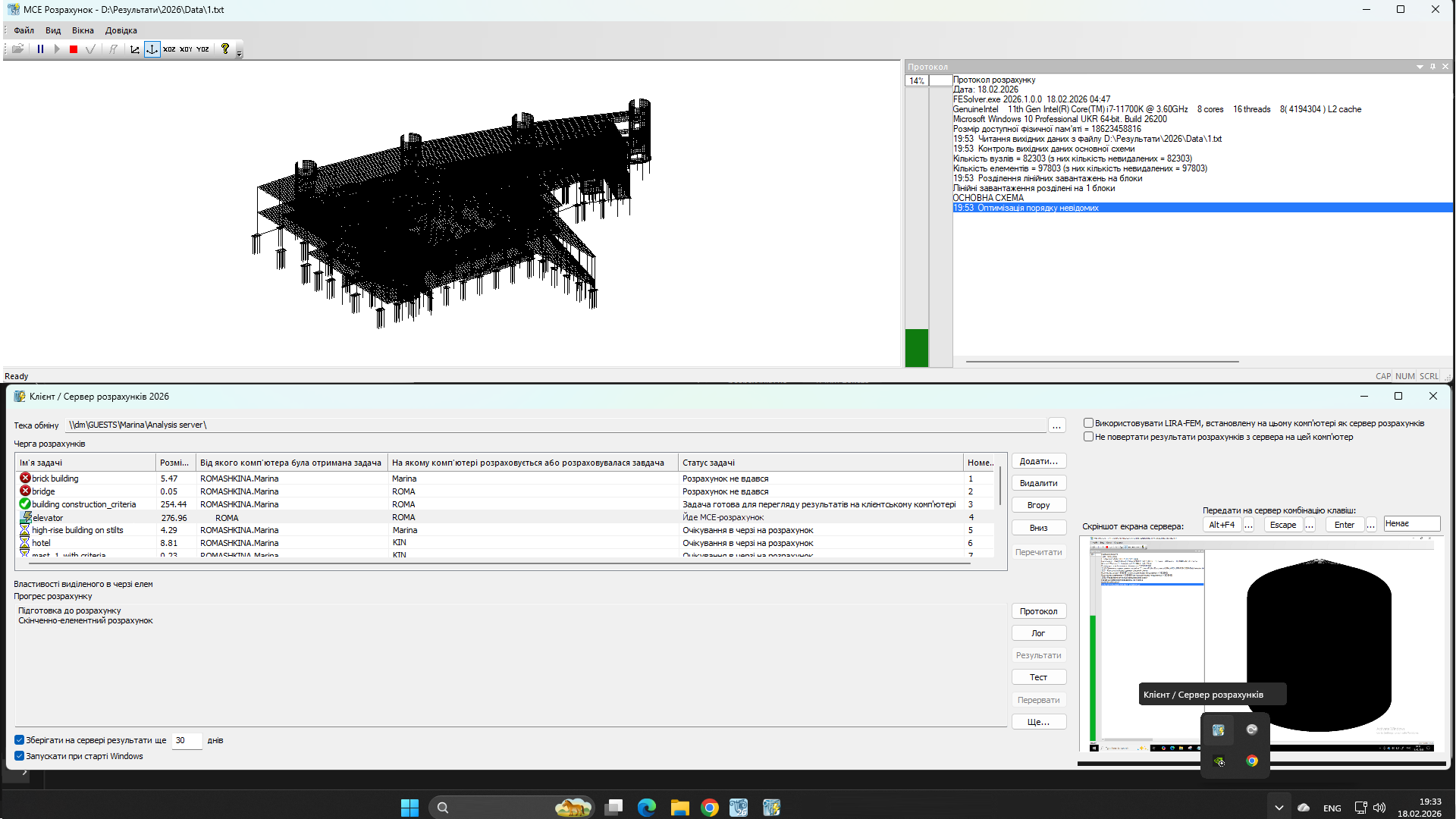

Parallel calculation of models on the client computer and analysis server

When the "Perform calculation on the analysis server (LAN)" checkbox is selected, the task and its superelements are automatically saved to disk with all settings and input data, after which the current task is added to the calculation queue.

User interface capabilities

  • Flexible storage: configuring where results are stored (a dedicated network resource or cloud services).
  • Monitoring: tracking calculation progress and receiving push notifications.
  • Queue management:
    • Users — full control over their own tasks in the queue.
    • Administrators — centralized management of the organization's entire task queue.

Why is it convenient?

Reduced workstation load

While the server calculates tasks, your computer retains its full performance. You can create new analysis models without delays.

Maximum computing power

A server is typically equipped with higher-performance processors and more memory than a standard workstation, significantly accelerating the calculation process.

Autonomous and continuous operation

The system allows you to create a queue of dozens of analysis models that are calculated autonomously by the server, including outside working hours.

Batch calculation

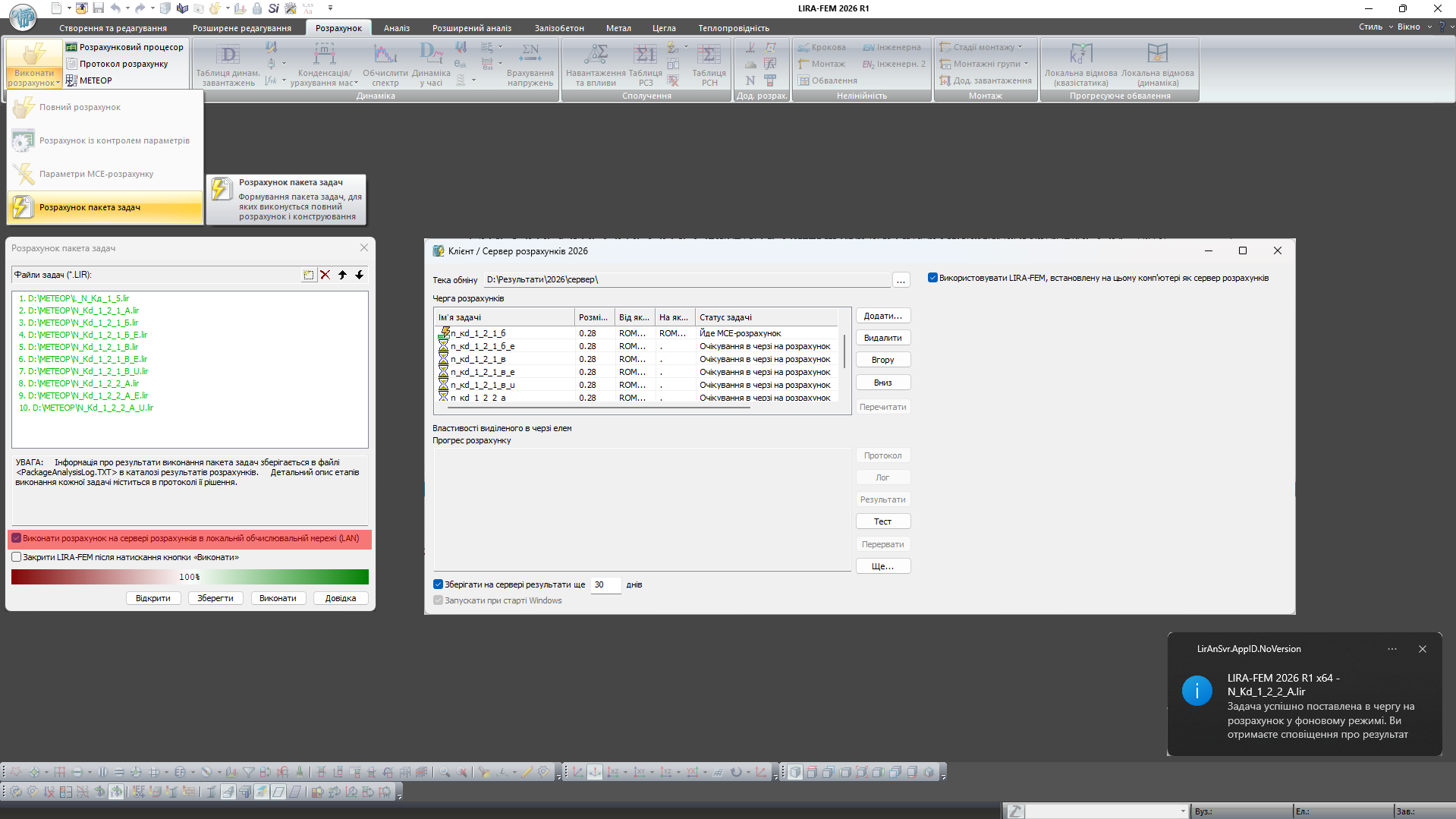

Calculation of a batch of tasks within a local network (LAN)

LIRA-FEM supports sequential calculation of a list (batch) of tasks with full execution of all stages:

  • Static and dynamic analysis
  • Load and action combinations (SNV)
  • Design combinations of forces (DCF)
  • Unification of design combinations of forces
  • Load on fragment
  • Design load combinations (DLC)
  • Calculation of principal and equivalent stresses (LITERA)
  • Calculation of crack parameters for nonlinear materials
  • Calculation of LIRA-FEM extensions
  • Calculation of design systems

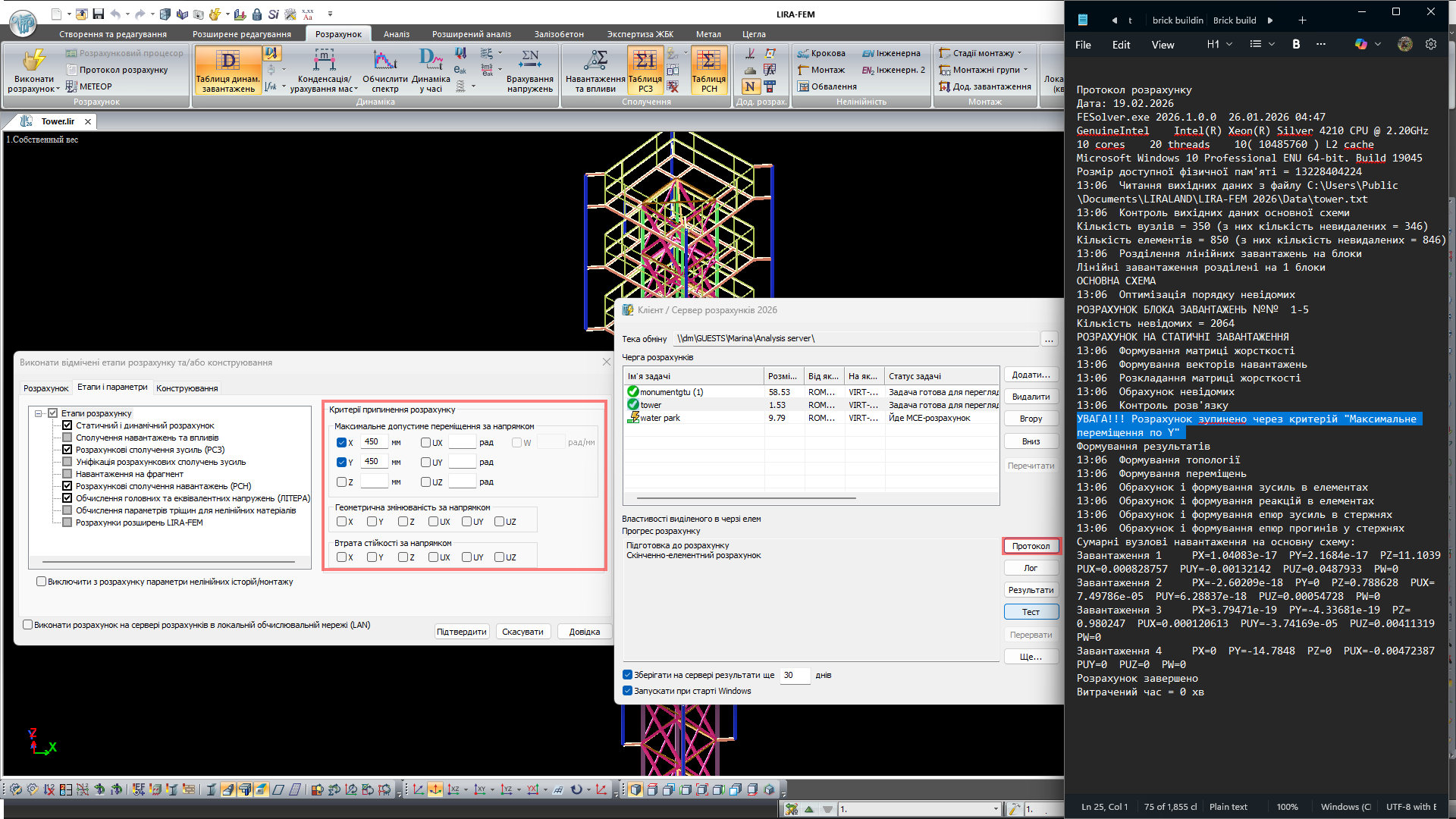

analysis server: calculation termination criteria
Termination criteria: The user can control the termination of static and dynamic calculations. If a termination criterion is triggered for an individual task, the system automatically proceeds to the next task in the list, significantly reducing the overall calculation time.

The prepared batch of tasks can be submitted to the server queue. During calculation, the user can continue working on their workstation while making the most efficient use of licenses and computing resources.
